Laars FT 301/399 Primary Pump Selection

FT Pumps - Commercial 301 + 399

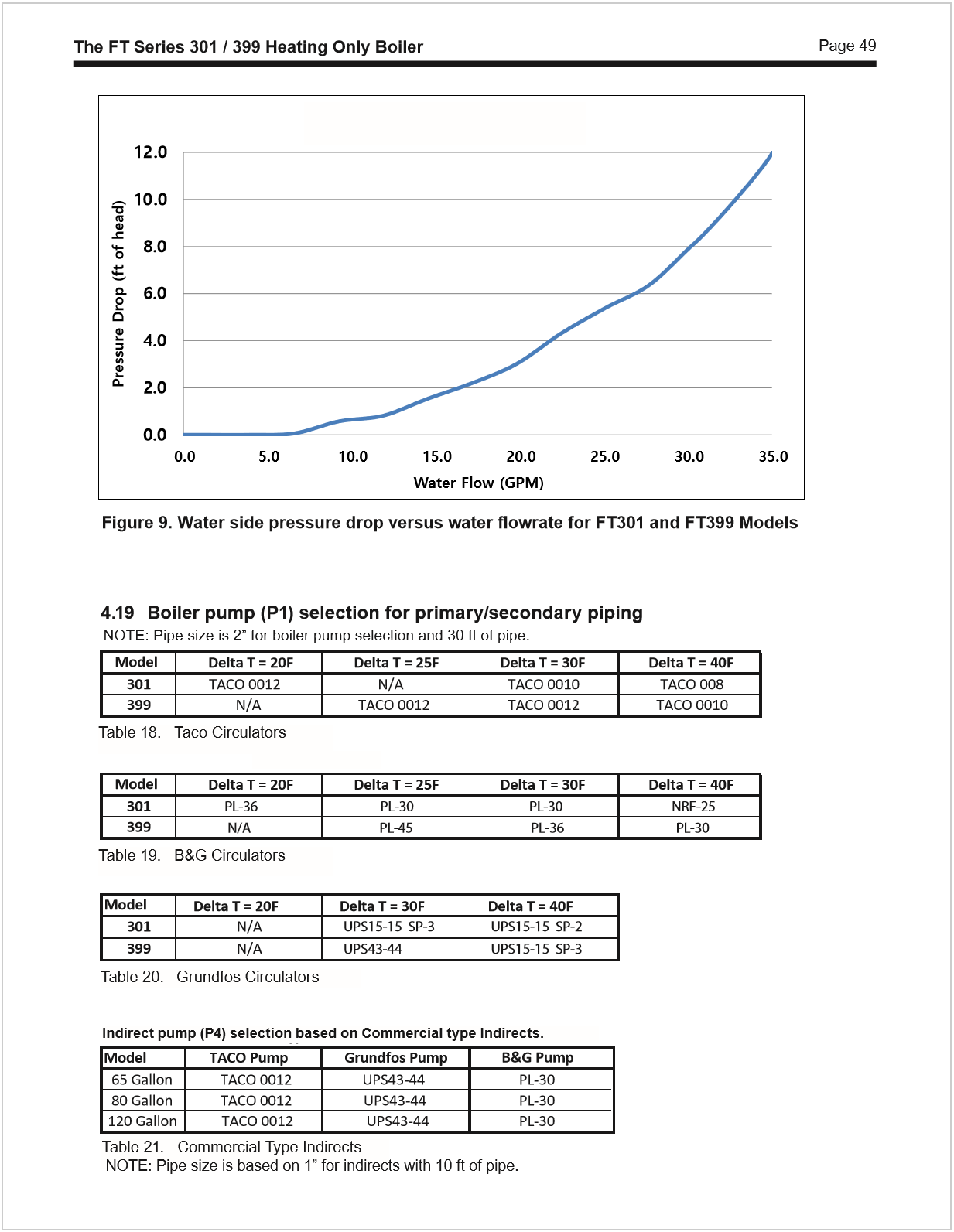

From page 49 of the Laars FT 301-399 I/O Manual



<<page 49 .pdf>>
