LAARS FTCW140 Parts List and Exploded View
|
No. |
Description |
Part Number |
|
O-6 |
O-Ring P6 |
FT2092 |
|
15 |
Vent Pipe Collar Ass’y |
FT3015 |
|
15-1 |
Stainless band (Ø100) |
FT1603 |
|
15-2 |
Packing |
FT1604 |
|
15-3 |
3 inch Vent Pipe Collar |
FT3016 |
|
15-4 |
O-Ring P75 |
FT1609 |
|
15-5 |
O-Ring P7 |
FT1601 |
|
15-6 |
Exhaust testing cap |
FT1606 |
|
16 |
Air Intake Collar Ass’y (filter type) |
FT3010 |
|
16-1 |
Stainless band (Ø100) |
FT1603 |
|
16-2 |
Packing |
FT1604 |
|
16-3 |
3 inch Air Intake Collar |
FT3011 |
|
16-4 |
Air Filter |
FT3012 |
|
16-5 |
Air Filter Packing |
FT3013 |
|
B-13 |
M4*14 Flange Bolt |
|
|
17 |
Air Vent |
FT1321 |
|
18 |
Air Vent Rubber Packing |
FT1013 |
|
19 |
Gasket Bracket |
FT1797 |
|
20 |
Safety Valve Rubber Pad |
FT1921 |
|
21 |
Air pressure sensor (80) |
FT1804 |
|
22 |
PCB Control (NGTX-900CP) |
FT1899 |
|
23 |
Ignition Transformer |
ST1006 |
|
24 |
Control sub-bracket |
FT2004 |
|
25 |
Display Control |
FT2005 |
|
26 |
Bracket |
FT2006 |
|
27 |
Condensate blockage, Air pressure switch |
FT1022 |
|
28 |
Control bracket |
FT1922 |
|
29 |
Power Switch |
FT1020 |
|
30 |
Terminal block (6P) |
FT1827 |
|
30-1 |
Terminal block (8P) |
FT2007 |
|
31 |
Front Cover |
FT2008 |
|
32 |
Display panel cover |
FT2009 |
|
33 |
Pressure gauge |
FT1058 |
|
33-1 |
Pressure gauge bracket |
FT2010 |
|
34 |
Intake/Exhaust sealing pad |
FT1771 |
|
35 |
Wall Hung bracket (top) |
FT1924 |
|
36 |
Casing assembly |
FT2105 |
|
37 |
Wall hung bracket (bottom) |
FT1936 |
|

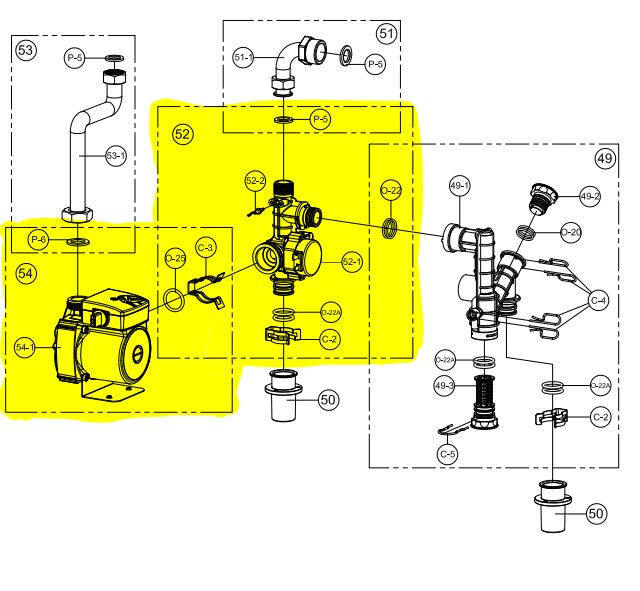

No. |
Description |
Part Number |
|
B2 |
CH Hydro block assembly |
FT1100 |
|
49 |
Return block assembly |
FT2106 |
|
49-1 |
Return block |
FT1523 |
|
49-2 |
Block cap |
FT1121 |
|
49-3 |
CH Filter |
FT1216 |
|
O-20 |
O-Ring P20 |
FT1513 |
|
O-22 |
O-Ring P22 |
FT1644 |
|
O-22A |
O-Ring P22A |
FT1515 |
|
C-2 |
Piping clip |
FT1107 |
|
C-4 |
R Clip |
FT1524 |
|
C-5 |
U Clip |
FT1217 |
|
50 |
CH Return, Supply connector |
FT1215 |
|
51 |
CH Return Pipe assembly |
FT3308 |
|
51-1 |
CH return pipe |
|
|
P-5 |
¾” Packing |
FT1646 |
|
52 |
3 way valve assembly |
FT2108 |
|
52-1 |
3 way valve |
FT1220 |
|
52-2 |
CH Return sensor |
FT1219 |
|
P-5 |
¾” Packing |
FT1646 |
|
O-22 |
O-Ring P22 |
FT1644 |
|
O-22A |
O-Ring P22A |
FT1515 |
|
O-25 |
O-Ring P25 |
FT1516 |
|
C-2 |
Piping clip |
FT1107 |
|
C-3 |
Pump clip |
FT1108 |
|
53 |
CH Supply Pipe Assembly |
|
|
53-1 |
CH Supply pipe |
|
|
P-5 |
¾” Packing |
FT1646 |
|
P-6 |
1” Packing |
FT1691 |
|
54 |
Pump assembly |
FT2110 |
|
54-1 |
Pump |
|
|
P-6 |
1” Packing |
FT1691 |
|
O-25 |
O-Ring P25 |
FT1516 |
|
C-3 |
Pump Clip |
FT1108 |
|
No. |
Description |
Part Number |
|
B3 |
DHW Hydro block assembly |
FT1200 |
|
40 |
DHW Outlet Pipe assembly |
FT2111 |
|
40-1 |
DHE Outlet Pipe |
|
|
P-4 |
½” Packing |
FT1645 |
|
O-18 |
O-Ring P18 |
FT1687 |
|
C-1 |
Flow sensor clip |
FT1208 |
|
41 |
DHW Outer block assembly |
FT2112 |
|
41-1 |
DHW Outer block |
FT1518 |
|
41-2 |
DHW Temperature Sensor |
FT1112 |
|
O-15 |
O-Ring P15 |
FT1685 |
|
O-18 |
O-Ring P18 |
FT1687 |
|
O-22A |
O-Ring P22A |
FT1515 |
|
C-1 |
Flow sensor clip |
FT1208 |
|
C-2 |
Piping clip |
FT1107 |
|
42 |
DHW Nipple |
FT1111 |
|
43 |
DHW Inlet Pipe Assembly |
FT2113 |
|
43-1 |
DHW Inlet pipe |
|
|
P-4 |
½” Packing |
FT1645 |
|
O-18 |
O-Ring P18 |
FT1687 |
|
C-1 |
Flow sensor clip |
FT1208 |
|
44 |
Mixing Valve assembly |
FT2114 |
|
44-1 |
Mixing valve |
|
|
O-15 |
O-Ring P15 |
FT1685 |
|
O-16 |
O-Ring P16 |
FT1643 |
|
C-1 |
Flow sensor clip |
FT1208 |
|
45 |
Flow sensor assembly |
FT2115 |
|
45-1 |
Flow sensor |
|
|
O-16 |
O-Ring P16 |
FT1643 |
|
O-18 |
O-Ring P18 |
FT1687 |
|
C-1 |
Flow sensor clip |
FT1208 |
|
46 |
DHW Inlet block assembly |
FT2116 |
|
46-1 |
DHW Inlet Block |
FT1522 |
|
O-16 |
O-Ring P16 |
FT1643 |
|
C-1 |
Flow sensor clip |
FT1208 |
|
47 |
DHW Filter body assembly |
FT2117 |
|
47-1 |
DHW Filter body |
FT1549 |
|
47-2 |
Flow restrictor (5L) |
FT1119 |
|
47-3 |
DHW Filter mesh |
FT1120 |
|
47-4 |
Block cap |
FT1121 |
|
O-16 |
O-Ring P16 |
FT1643 |
|
O-20 |
O-Ring P20 |
FT1513 |
|
C-1 |
Flow sensor clip |
FT1208 |
|
C-4 |
R Clip |
FT1524 |
|
48 |
DHW Connector |
F1122 |
|

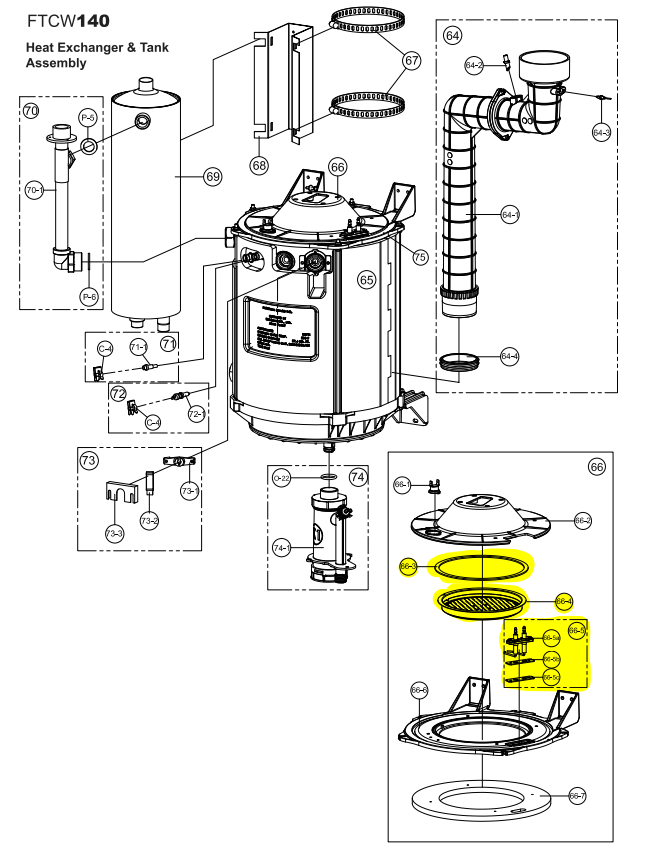

No. |
Description |
Part Number |
|
64 |
Exhaust pipe assembly |
FT2011 |
|
64-1 |
Exhaust pipe |
FT2094 |
|
64-2 |
EX-Adaptor |
FT1784 |
|
64-3 |
Exhaust overheat sensor |
FT1307 |
|
64-4 |
Exhaust pipe packing (lower) |
FT2012 |
|
65 |
Heat Exchanger assembly |
FT3310 |
|
66 |
Burner assembly |
FT2014 |
|
66-1 |
Overheat sensor |
FT1310 |
|
66-2 |
Burner upper case |
FT1926 |
|
66-3 |
Burner packing |
FT1927 |
|
66-4 |
Burner |
FT2015 |
|
66-5 |
Ignition rod assembly |
FT2118 |
|
66-5a |
Ignition rod |
FT2016 |
|
66-5b |
Ignition rod gasket |
FT1316 |
|
66-5c |
Ignitor ceramic paper |
FT2017 |
|
66-6 |
Burner downside case |
FT1928 |
|
66-7 |
Refractory |
FT1665 |
|
67 |
Stainless band (Ø150) |
FT1528 |
|
68 |
DHW Tank bracket |
FT1530 |
|
69 |
DHW Tank |
FT1323 |
|
70 |
CH Supply upper pipe assembly |
FT3311 |
|
70-1 |
CH Supply upper pipe |
|
|
P-5 |
¾” Packing |
FT1646 |
|
P-6 |
1” Packing |
FT1691 |
|
71 |
Temperature sensor assembly |
FT3313 |
|
71-1 |
Temperature sensor |
FT3305 |
|
C-4 |
Clip, Temperature Sensor |
FT3306 |
|
72 |
Low level sensor assembly |
FT3314 |
|
72.1 |
Low Level Sensor |
FT3307 |
|
C-4 |
Clip, Temperature Sensor |
FT3306 |
|
73 |
Flame detector sensor assembly |
FT2120 |
|
73-1 |
Flame detector sensor bracket |
FT1669 |
|
73-2 |
Flame detector sensor |
FT1327 |
|
73-3 |
Flame detector sensor cover |
FT1069 |
|
74 |
Condensate trap assembly |
FT1783 |
|
O-22 |
O-Ring P22 |
FT1644 |
|
75 |
HX Packing |
FT1961 |
|

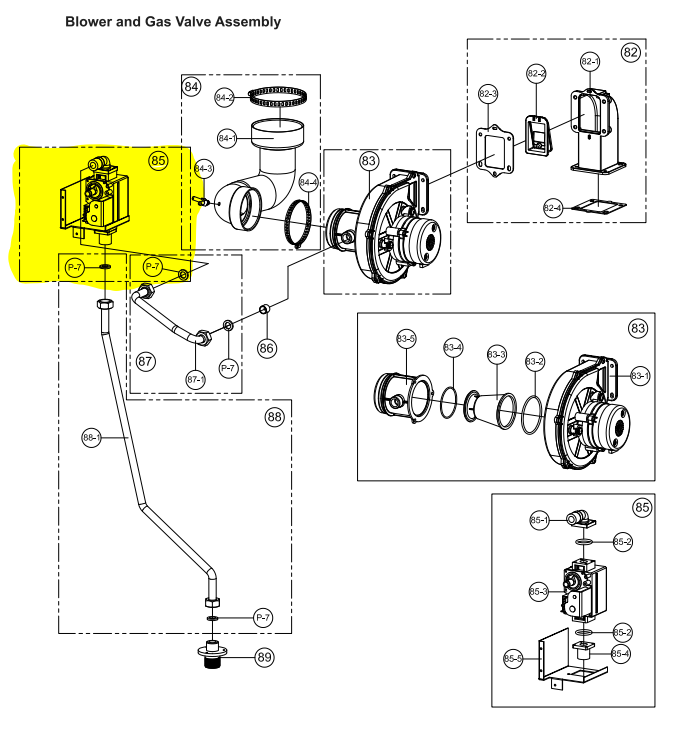

No. |
Description |
Part Number |
|
82 |
Fan guide assembly |
FT2121 |
|
82-1 |
Fan guide |
FT2018 |
|
82-2 |
Damper body assembly |
FT2019 |
|
82-3 |
Fan rubber packing #2 |
FT2020 |
|
82-4 |
Fan rubber packing (1.6t) |
FT1082 |
|
83 |
Fan assembly |
FT2021 |
|
83-1 |
Fan |
FT1406 |
|
83-2 |
Fan sealing O-Ring |
ST1038 |
|
83-3 |
AGM Venturi (Ø23) |
FT2022 |
|
83-4 |
AGM O-Ring |
FT1774 |
|
83-5 |
AGM Body |
FT1775 |
|
84 |
Air Intake hose (140K) assembly |
FT2122 |
|
84-1 |
Air Intake hose (140K) |
FT1929 |
|
84-2 |
Stainless band (Ø100) |
FT1603 |
|
84-3 |
Nylon Barb Y Fitting |
FT1918 |
|
84-4 |
Stainless band (Ø89) |
FT1777 |
|
85 |
Gas Valve Assembly |
FT1413 |
|
85-1 |
Gas Valve Outlet Adaptor |
FT1919 |
|
85-2 |
Gas Valve O-Ring |
FT1415 |
|
85-3 |
Gas Valve |
FT1416 |
|
85-4 |
Gas Valve Inlet Adaptor |
FT1538 |
|
85-5 |
Gas Valve bracket |
FT1539 |
|
P-7 |
½” Spiral packing |
FT1710 |
|
86 |
Nozzle Natural 6.2mm |
FT2027 |
|
86 |
Nozzle Propane 4.7mm |
FT2028 |
|
87 |
Gas Pipe (upper) assembly |
FT2123 |
|
87-1 |
Gas Pipe (upper) |
|
|
P-7 |
½” Spiral packing |
FT1710 |
|
88 |
Gas pipe (down) assembly |
FT2124 |
|
88-1 |
Gas pipe (down) |
|
|
P-7 |
½” Spiral packing |
FT1710 |
|
89 |
Gas inlet adaptor |
FT1893 |
|
No. |
Description |
Part Number |
|
100 |
Pressure relief valve |
FT1500 |
|
101 |
Outdoor temperature sensor |
FT1501 |
|
102 |
Bird screen 3” |
FT1730 |
|
104 |
Spare parts kit |
FT2030 |
|
105 |
Condensate hose |
ST1070 |
|
106 |
Restrictor (12L) |
FT1506 |
|
107 |
Wall hung bracket |
FT1894 |
|
114 |
Wire harness |
FT1904 |
|
115 |
Gas Conversion kit |
FT2141 |
