LAARS LT199NXX1/LT199PXX1 Parts List and Exploded View
|
No. |
Description |
Part Number |
|
1 |
Exhaust Vent Duct Assembly |
ST1224 |
|
1-1 |
Exhaust Vent Cap Assembly |
ST1225 |
|
1-2 |
Exhaust and Intake Packing |
ST1190 |
|
O-75 |
O-Ring P75 (10 pcs.) |
ST1244 |
|
O-7 |
O-Ring P7 (10 pcs.) |
ST1242 |
|
2 |
Intake Inlet Duct Assembly |
ST1226 |
|
3 |
Air Intake Filter Assembly |
ST1227 |
|
4 |
Ignition Transformer |
ST1006 |
|
5 |
Air Pressure Switch |
ST1144 |
|
6 |
Overheat Switch 15°C (with Bracket) |
ST1008 |
|
7 |
Control display RTGS & LT Standard (PR-922C) |
ST1140 |
|
8 |
Main Power Switch |
ST1019 |
|
9 |
On-Demand Terminal Block |
ST1143 |
|
10 |
Bracket for control display |
ST1093 |
|
11 |
Front Cover Assembly |
ST1099 |
|
12 |
PPS Bracket_1 |
ST1168 |
|
13 |
PPS Bracket_2 |
ST1169 |
|
14 |
Printed Circuit Board |
ST1139 |
|
15 |
PCB Bracket |
ST1163 |
|
16 |
Wiring Through Way Packing |
ST1189 |
|
17 |
Water Leak Detector |
ST1146 |
|
18 |
Gas Inlet Nipple |
ST1007 |
|
19 |
Siphon Assembly |
ST1101 |
|
20 |
Water Inlet Filter |
ST1024 |
|
20-1 |
Water Inlet Filter |
ST1024 |
|
20-2 |
Cald Water Temperature Sensor Assembly |
ST1229 |
|
21 |
Flow Control Valve Assembly |
ST1105 |
|
22 |
DHW Supply Pipe Assembly |
ST1100 |
|
22-1 |
DHW Temperature Sensor Assembly |
ST1228 |
|
O-10 |
O-Ring (P10A) |
ST1192 |
|
C-2 |
Star CLIP (Small) |
ST1054 |
|
O-16 |
O-Ring (P16) |
ST1194 |
|
No. |
Description |
Part Number |
|

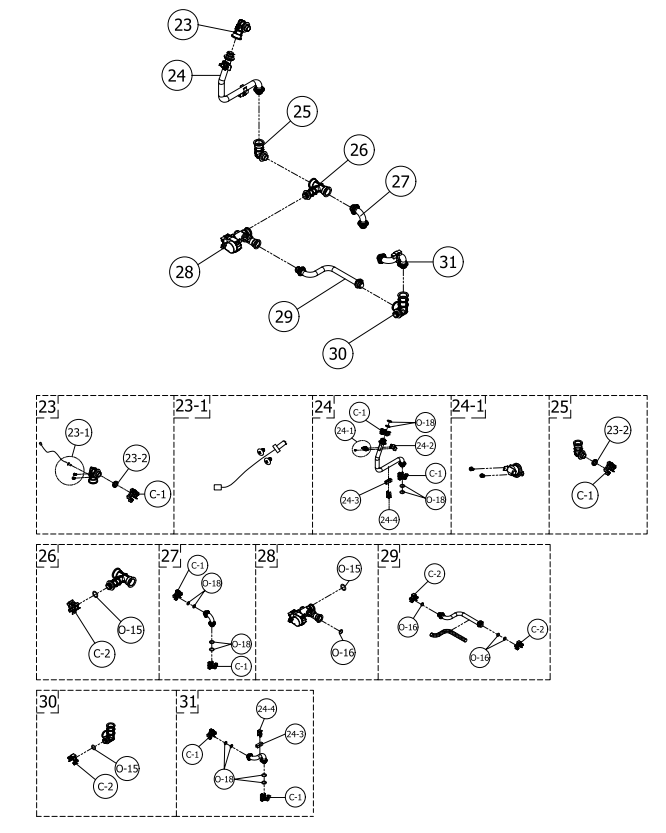

23 |
Hot Water Outlet Block Assembly |
ST1106 |
|
23-1 |
Hot Water Temperature Sensor Assembly |
ST1230 |
|
23-2 |
Block Packing |
ST1218 |
|
24 |
Hot Water Outlet Pipe 1 Assembly (Standard) |
ST1125 |
|
24-1 |
Overheat Switch 95°C Assembly |
ST1231 |
|
24-2 |
Overheat Switch Bracket |
ST1167 |
|
24-3 |
Ceramic Heater |
ST1056 |
|
24-4 |
Ceramic Heater Bracket |
ST1164 |
|
25 |
Hot Water Outlet Block (blockage) Assembly |
ST1126 |
|
26 |
T-Block Assembly |
ST1127 |
|
27 |
Hot Water Outlet Pipe 2 Assembly (Standard) |
ST1128 |
|
28 |
Water Mixing Valve Assembly |
ST1232 |
|
29 |
Mixing Pipe Assembly |
ST1129 |
|
30 |
Cold Water Inlet Block Assembly |
ST1130 |
|
31 |
Cold Water Inlet Pipe Assembly |
ST1131 |
|
C-1 |
Star CLIP (Large) |
ST1116 |
|
C-2 |
Star CLIP (Small) |
ST1054 |
|
O-15 |
O-Ring (P15) |
ST1193 |
|
O-16 |
O-Ring (P16) |
ST1194 |
|
O-18 |
O-Ring (P18) |
ST1195 |
|
No. |
Description |
Part Number |
|
32 |
Heat Exchanger Assembly |
ST1202 |
|
33 |
Exhaust Pipe Upper |
ST1134 |
|
33-1 |
Exhaust Temperature Sensor |
ST1031 |
|
34 |
Exhaust Packing (5 pcs.) |
ST1248 |
|
35 |
Burner Assembly |
ST1119 |
|
35-1 |
Ignition Rod Assembly |
ST1204 |
|
35-2 |
Burner High Limit Switch Assembly |
ST1234 |
|
35-3 |
Burner Gasket |
ST1199 |
|
36 |
Burner Head Packing |
ST1191 |
|
37 |
Burner Head Bracket |
ST1136 |
|
38 |
Blower Assembly |
ST1120 |
|
39 |
Mixer Assembly Kit NG |
ST1147 |
|
39 |
Mixer Assembly Kit LP |
ST1148 |
|
40 |
AGM Cover Assembly |
ST1205 |
|
41 |
ASM (Actuator) |
ST1255 |
|
42 |
Silencer Elbow Assembly |
ST1235 |
|
43 |
Silencer Body Assembly |
ST1236 |
|
44 |
Gas Pipe (upper) Assembly |
ST1121 |
|
44-1 |
Gas Mixer Packing |
ST1188 |
|
44-2 |
15A Packing (Green) 10 pcs |
ST1247 |
|
45 |
Gas Valve Assembly |
ST1122 |
|
46 |
Gas Pipe (lower) Assembly Standard |
ST1132 |
|
46-1 |
15A Packing |
FT1645 |
|
47 |
Ignition Rod Gasket |
ST1198 |
|
48 |
Flame Observation Assembly |
ST1095 |
|
49 |
Flame Detector Sensor Assembly |
ST1096 |
|
50 |
Flame Detector Sensor Cover |
ST1165 |
|
51 |
Flame Detector Sensor Bracket |
ST1187 |
|
52 |
Flame Detector Sensor |
FT1327 |
|
53 |
Burner Bracket (Left) |
ST1137 |
|
54 |
Burner Bracket (Right) |
ST1138 |
|
55 |
HEX Connection Pipe Assembly |
ST1254 |
|
C-2 |
Star CLIP (Small) |
ST1054 |
|
O-18 |
O-Ring (P18) |
ST1195 |
|
O-22 |
O-Ring P22 10pcs |
ST1245 |
