TPI DC710 ANALYZERS INCORRECTLY READING A NEGATIVE (-) TEMPERATURE

TPI DC710 ANALYZERS INCORRECTLY READING A NEGATIVE (-) TEMPERATURE


TPI DC710 ANALYZERS INCORRECTLY READING A NEGATIVE (-) TEMPERATURE

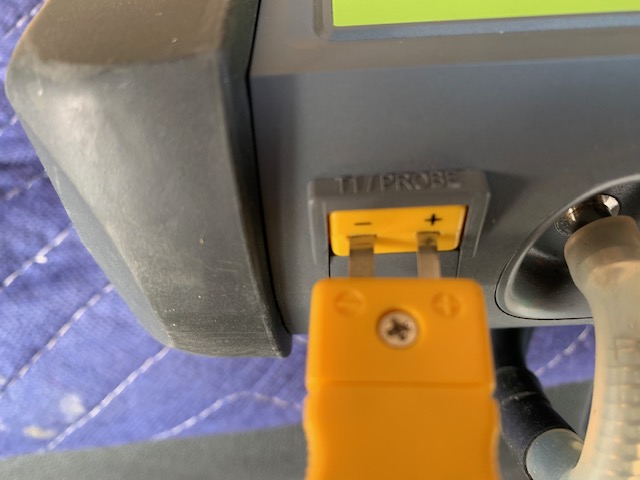

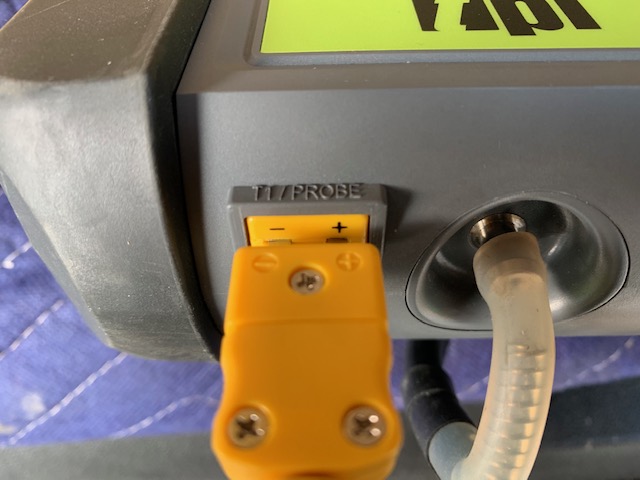

If a customer should call regarding getting NEGATIVE (-)TEMPERATURE READINGS on the TPI DC710 analyzers, please have them reverse the wiring connector that they plug in from the flue probe to the device(T1,T2). The connector is a “keyed” connector , one lug larger than than the other, but can be put in backwards into the T1 or T2 connection in the devices with a little wiggle and a meaningful push.



These connections ARE polarity sensitive( +,-) and are clearly marked on the wiring connector of the flue probe and the  analyzer.





This is clearly stated in the TPI DC 710 Analyzer operating manual (Page 8 ) .

The TPI DC 710 operating manual can be found here:

https://32wgdcovmzt1bpwzd2jr75fe-wpengine.netdna-ssl.com/wp-content/uploads/2019/03/DC710-081818_a.pdf
